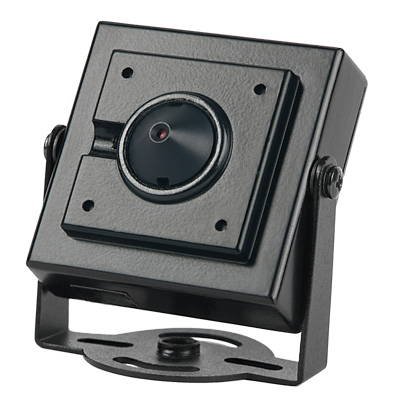

1/3" Sony Super HAD CCD Miniature Camera

1/3
Configuration Options
SCW-Mini-420-Pin-POWER
Only:
$69.77



Product Details
  • 1/3" Sony Super HAD CCD Color, Miniature Size
  • 420 TV Lines
  • 0.5 Lux
  • 3.7mm Pinhole Lens
  • High Sensitivity
  • High Resolution
  • Audio selectable
  • 1 year parts and labor warranty


Specifications

Model
SCW-Mini-420-Pin
Image Sensor
1/3" Sony super HAD CCD
Effective pixels
PAL:500(H)x582(v) (upon special request)
NTSC:510(H)x492(v)
Signal System
PAL/NTSC (NTSC Default)
Horizontal Resolution
420 TVL
Minimum Illumination
0.5 Lux @ F1.2
Built-in Lens
3.7mm pinhole Lens
S/N Ratio
More than 48dB
Shutter Speed
1/50(1/60)1/100,000(Sec.)
White Balance
Auto Tracking White Balance
Video Output
1Vp-p,75ohm,BNC
Power Consumption
DC12V, 120mA
Operating Temperature
-10C ~ +50C
