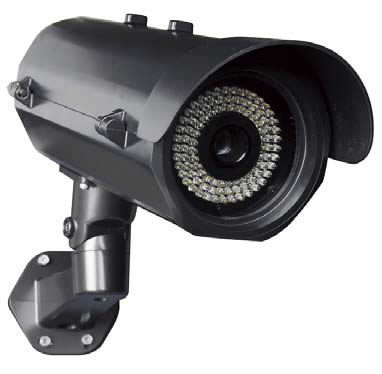

Sony DSP License Plate Capture Camera for High Speed Vehicle 600 TVL 230 Foot IR Range
IR Range 230 Feet
Configuration
Options
LPL-600-3.9-32
Only:
$1,990.96
Product Details
B&W License Plate Capture Camera for High Speed Vehicle
Sony DSP
Sony 1/2" CCD
600 TVL Resolution
230 Foot IR Range
CatchAll Engine
Water Proof IP67
Water Proof IP66
Minimum Illumination 0 Lux with IR on
45W Heater with Blower
Specifications
Drivers & Manuals
Photos
Accessories
Comments
Specifications
Image System
Imaging area
7.4mm x 5.95mm
Image pickup device
1/2" Sony CCD
Effective pixels (HxV)
768 x 494
Electric
Scanning System
2:1 Interlace V:59.94KHz
Sync system
Internal / Line-Lock (AC input only)
Horizontal resolution
600 TV Lines
Infrared illuminator
230 distance, 850nm wavelength, view angle of 6 degree
LEDs
Superior power; 96 pcs LEDs; Metaphase-type LEDs, high-efficient array
Gamma correction
0.45 / 1
Minimum illumination
IR on 0 Lux
S/N ratio
More than 50dB (AGC off)
Built-in Lens
f: 75mm; F: 3.9~32 (Manual Iris)
Gain control
0 / 6 / 12 / 15 / 18 / 24 / 30
Electric shutter
Aout 1/60 to 1/100,000sec, manual 9 steps (1/60, 1/100, 1/250, 1/500, 1/1K, 1/2K, 1/10K, 1/100K sec)
BLC
BLC1 / BLC2 / BLC3 / BLC4 / Off
Aperture
High / Mid / Low
OSD
Yes
Remote control
RS485 via PELCO P/D
Video output
1Vpp composit output, 75ohm
Mech.
Dimension
422mm x 174mm x 145mm
Weight
6kg / 13.22lb
Accessories
Wall mount / Corner mount / Pole mount
Environment
Operating temperature
-30C ~ 50C
Opeating humidity
30% ~ 90%
Storage temperature
-30C ~ 60C
Protection Class
IP66/67
Power Supply
Power requirement
AC24V
Power consumption
45W with Heater Blower
