1/4" SONY COLOR CCD Bullet Camera 420 TV Lines

1/4

Day Night

Configuration Options
B42noS
Only:
$67.78



Product Details
  • 1/3" Sony Color CCD Bullet Camera
  • 420 TV Lines
  • 4mm Lens
  • 0.5 Lux @ F1.2
  • NTSC:525 Lines,60 Field/sec
  • PAL:625 Lines 50 Field/sec
  • 1 year parts and labor warranty


Specifications

Image Pick-up Device 1/3" SONY COLOR CCD
Horizontal Resolution 420 TV Lines
Number of Pixels NTSC:510(H) x 492(V);
PAL:500(H) x 582(V)
*Note: PAL only available as special order.
Scanning System NTSC:525 Lines,60 Field/sec,
PAL:625 Lines 50 Field/sec
Sync System Internal Synchronization
Sensing Area 4.9mm x 3.6mm
Gamma Characteristic 0.45
S/N Ratio 48dB(AGC Off)
Electronic Shutter Time On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Off: NTSC 1/60 Sec, PAL 1/50 Sec
Usable Illumination 0.8 LUX (F:2.0)
Lens Board Lens 4mm
Video Output 1.0Vp-p ~ 75 ohm
Gain Control(AGC) Auto
Cable BNC JACK
Operation Temperature -10C ~ +50C RH 95% Max
Storage Temperature -20C ~ +60C RH 95% Max
Power Supply DC12V+/-10% 400mA
Power Consumption 500ma
Dimension ( R X H ):19 X63.5(mm)
Weight 300g

Drivers & Manuals

Photos & Videos

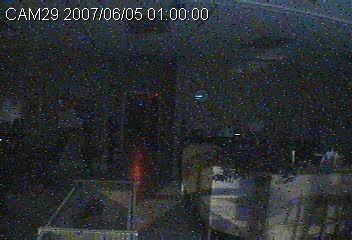

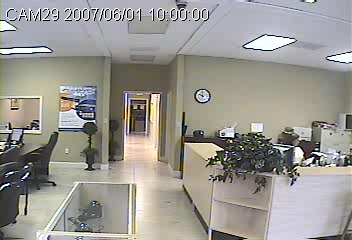

1/4TESTB42NOS_NIGHT.JPGTESTB42NOS_DAY.JPG
New And Improved Version

Old Version

Accessories


Comments & Reviews
