Micron Progressive Scan CMOS
1/3 inch
1280 x 1024
Color mode automatically switched to B/W mode under 4 Lux
0.05 Lux at F1.0 (2400 K, 30 IRE)
Yes
from 700nm to 1100 nm
f3.3 ~ 12 mm / F1.6
89.8 ~ 23.9 degrees (Horizontal)
0 ~360 degrees
0 ~180 degrees
Internal
Yes (3 Windows)
1/5 ~ 1/2,000 sec. (60Hz); 1/5 ~ 1/2,000 sec. (50Hz)
1/120 sec. (60Hz); 1/100 sec. (50Hz)
Automatic (User definition)
6 Modes (AUTO, INDOOR1, INDOOR2, OUTDOOR1, OUTDOOR2, HOLD CURRENT, MANUAL) Configurable
Better than 44 dB
MPEG-4 SP, MJPEG selectable
SXGA (1280x1024); HD720 (1280x720); VGA (640x480); QVGA (320 x 240); QQVGA (160 x 120)
SXGA at 8 fps; HD720 at 10 fps; VGA at 30 fps; QVGA at 30 fps; QQVGA at 30 fps
8kHz, Mono, PCM
Unbalanced, 1.4Vp-p, 1Vrms, terminal block
1, terminal block
Factory default
Weatherproof casing with IP66 standard
Vandal proof supports, durability up to 619.3 KgF
Surface / Flush / Wall
Ethernet (10/100 Base-T), RJ45 Connector
TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP,FTP,SMTP,DNS,DDNS,NTP,ICMP,IGMP,ARP,3GPP
Microsoft Internet Explorer 6.0 or above
ACTi SDK-10000
Password protection: configured by the administrator
Yes (built-in)
-30C ~ 50C (-22F ~ 122F) for DC 12 V; -5C ~ 50C (7F ~ 122F) for PoE
PoE (IEEE802.3af) with Class 3
3.4 W (DC 12 V) w/o Heater & Fan 13.2 W (DC 12 V) w/ Heater ON & Fan ON 4.4 W (PoE) w/o Heater & Fan

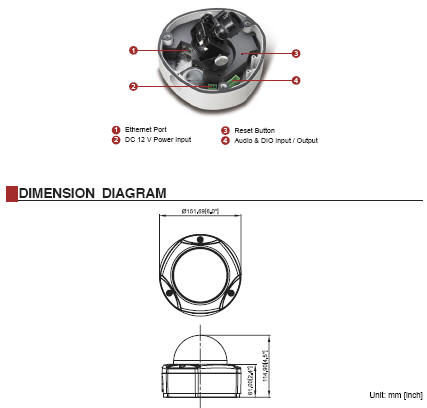

Physical
151.69 mm x 114.9 mm (6.0" x 4.5")
Weight
1040 g
