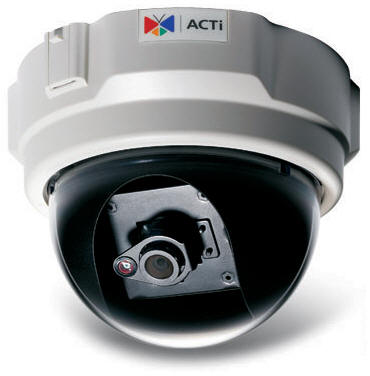

ACTi 1.3 Megapixel IP Fixed Dome Security Camera

Micron Progressive Scan CMOS

1/3 inch

1280 x 1024

0.5 Lux at F1.8 (30 IRE,MAX AGC)

B/W

N/A

IR Sensitivity

N/A

CDS Sensor

N/A

Lens

f4.2 mm / F1.8

Viewing Angle

75 (Horizontal)

X (Panning)

0 ~170 Degrees

0 ~90 Degrees

Internal

N/A

Yes (3 Windows)

1/10 ~ 1/2,000 sec. (60Hz); 1/10 ~ 1/2,000 sec. (50Hz)

1/120 sec. (60Hz); 1/100 sec. (50Hz)

Yes

Automatic (User defined)

6 modes
(AUTO,INDOOR1,INDOOR2,OUTDOOR1,OUTDOOR2, HOLD CURRENT,MANUAL) configurable

Better than 44 dB

MPEG-4 SP, MJPEG selectable

SXGA (1280x1024); HD 720 (1280x720); VGA (640x480)

SXGA at 8 fps; HD720 at 10 fps; VGA at 30 fps

8kHz, Mono, PCM

Unbalanced, 1.4Vp-p, 1Vrms, terminal block

8kHz, Mono, PCM

Unbalanced, 1.4Vp-p, 1Vrms, terminal block

Factory default

Surface / Wall (option)

Ethernet (10/100 Base-T), RJ-45 connector

TCP, UDP, IP, HTTP, DHCP, PPPoE, RTP, RTSP,FTP,SMTP,DNS,DDNS,NTP,ICMP,IGMP,ARP,3GPP

Microsoft Internet Explorer 6.0 or above

ACTi SDK-10000

Password protection: configured by the administrator

-10 C ~ 50 C (14 F ~ 122 F)

PoE (IEEE802.3af) with Class 3

3.3 W (DC 12 V); 4.3 W (PoE)

Physical

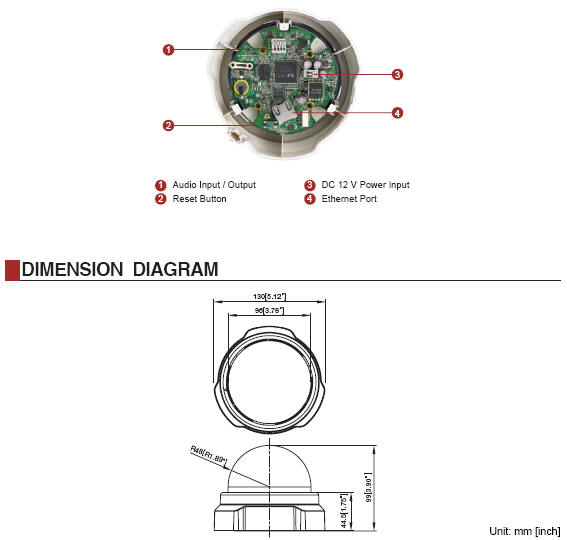

130 mm x 99 mm (5.12" x 3.90")

Weight

350 g (0.7 lb)
